IVAAP Architecture Diagrams

This document includes diagrams to help describe and understand IVAAP - both macro deployment level and micro data models.

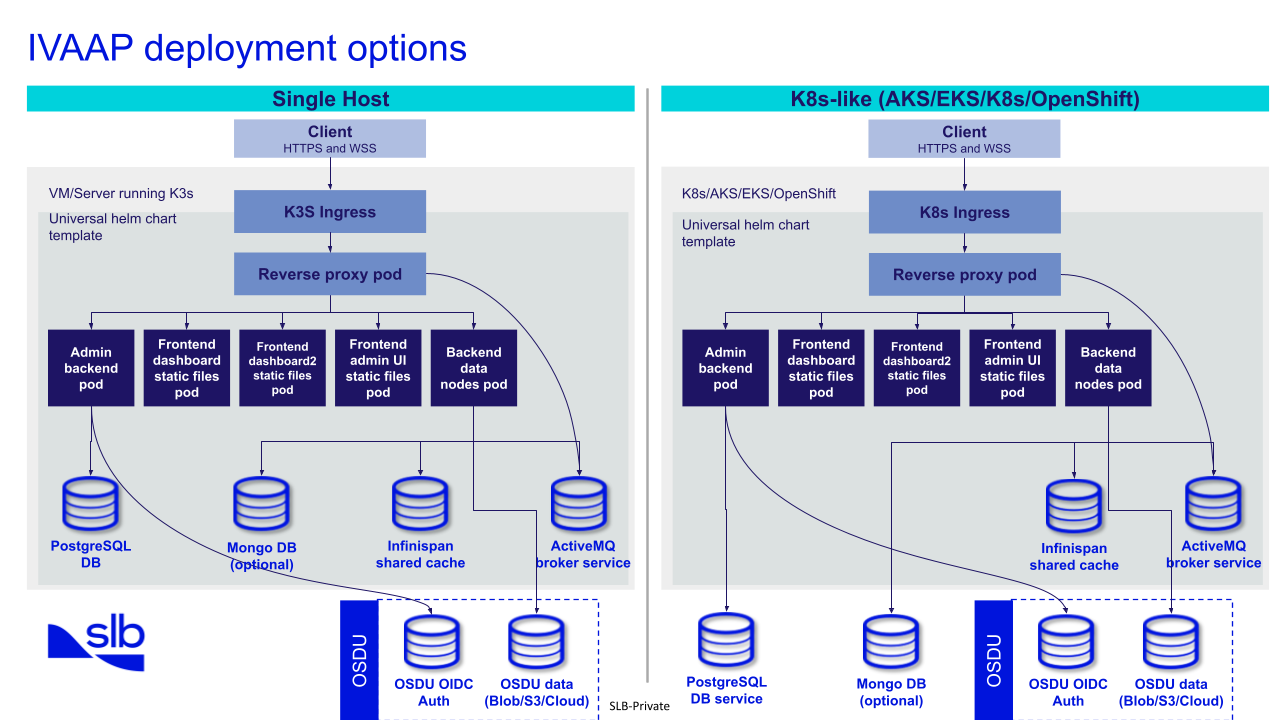

Deployment Type Examples

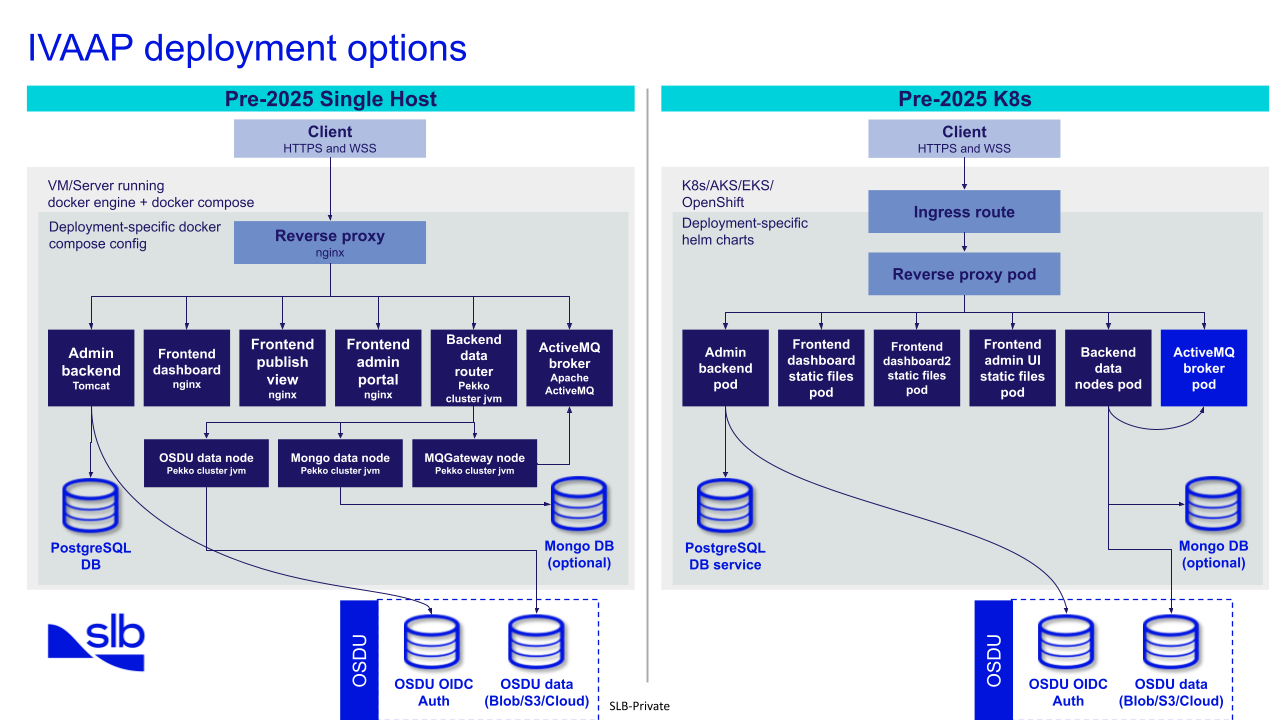

Legacy Deployments

Miscellaneous Diagrams

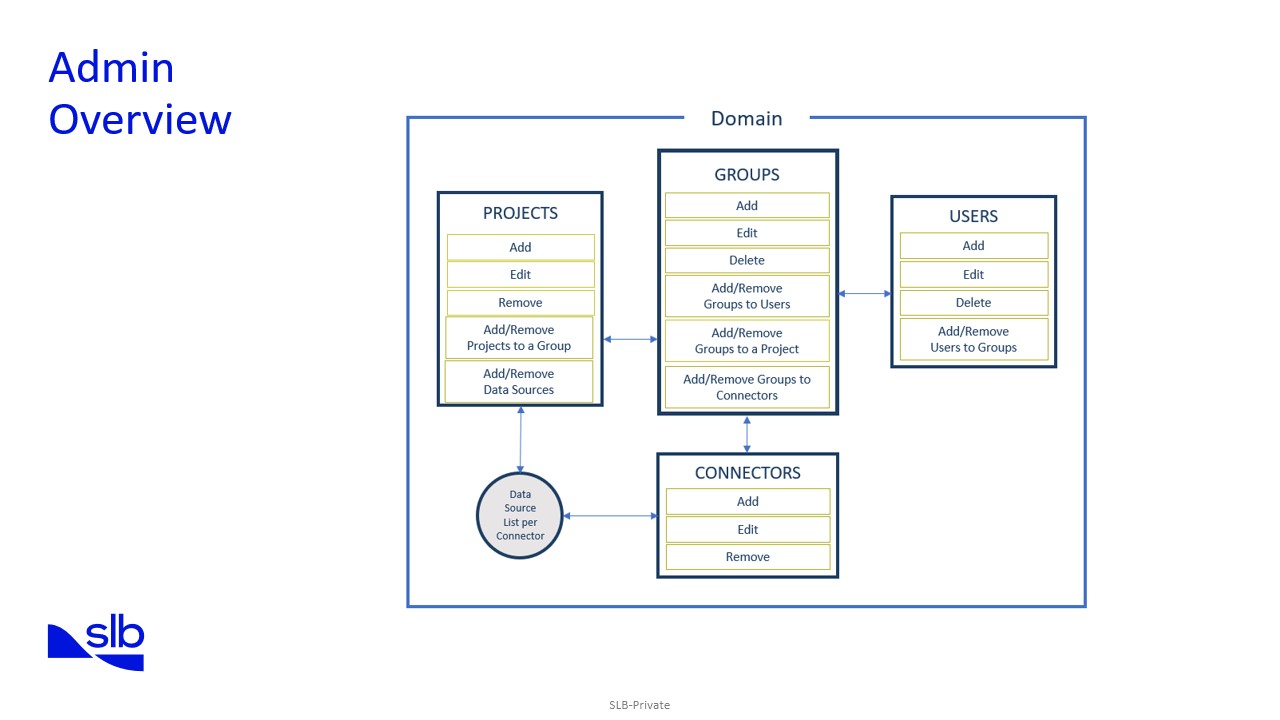

IVAAP Admin Database Overview

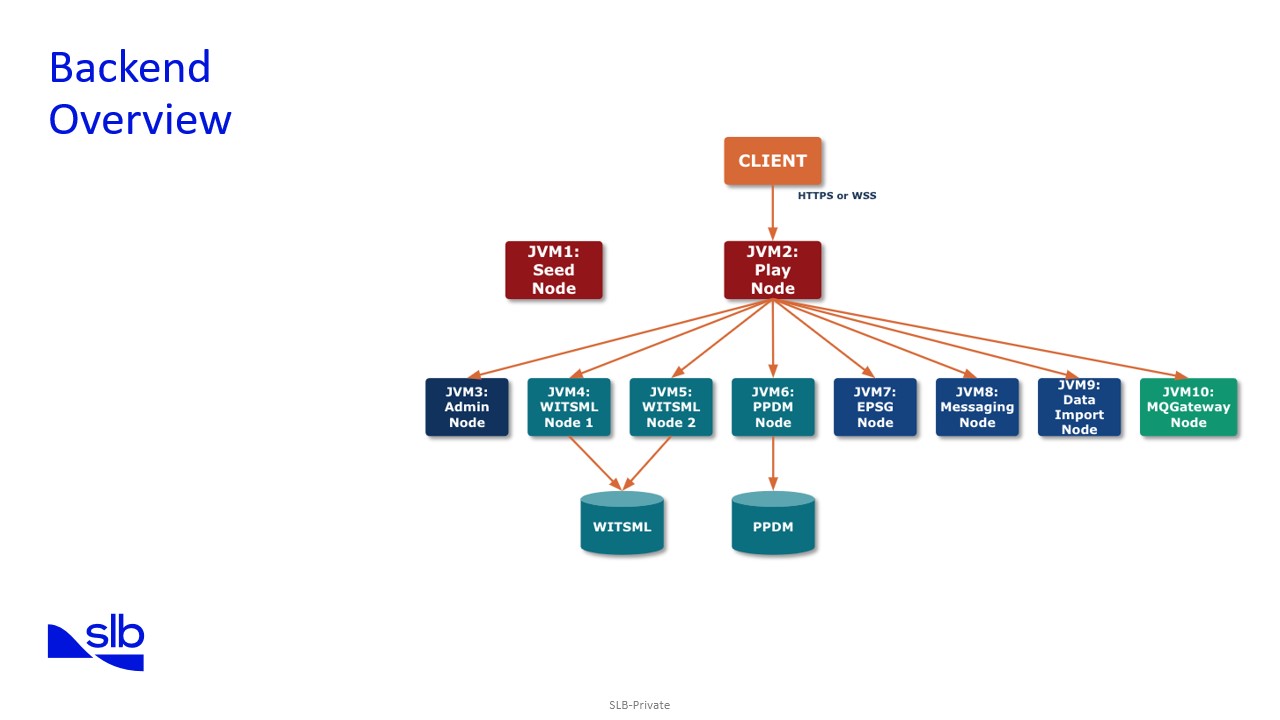

IVAAP Backend Architecture

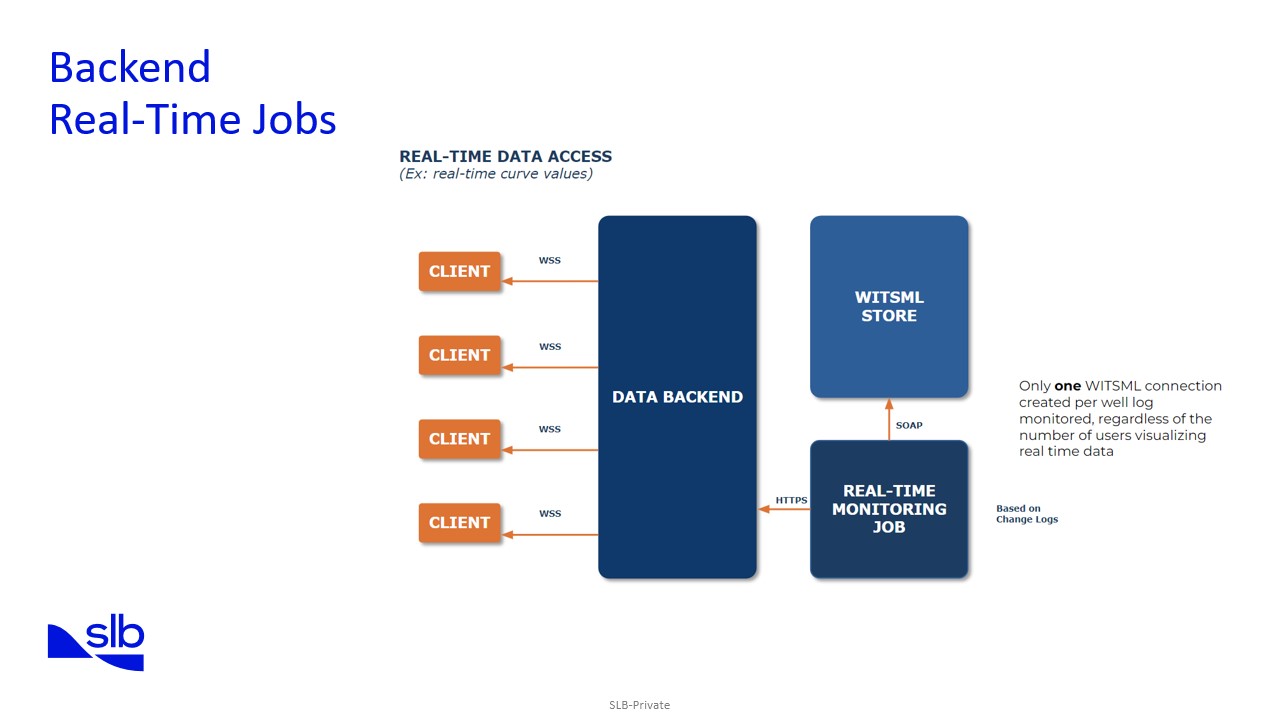

IVAAP Backend real-time Witsml jobs
